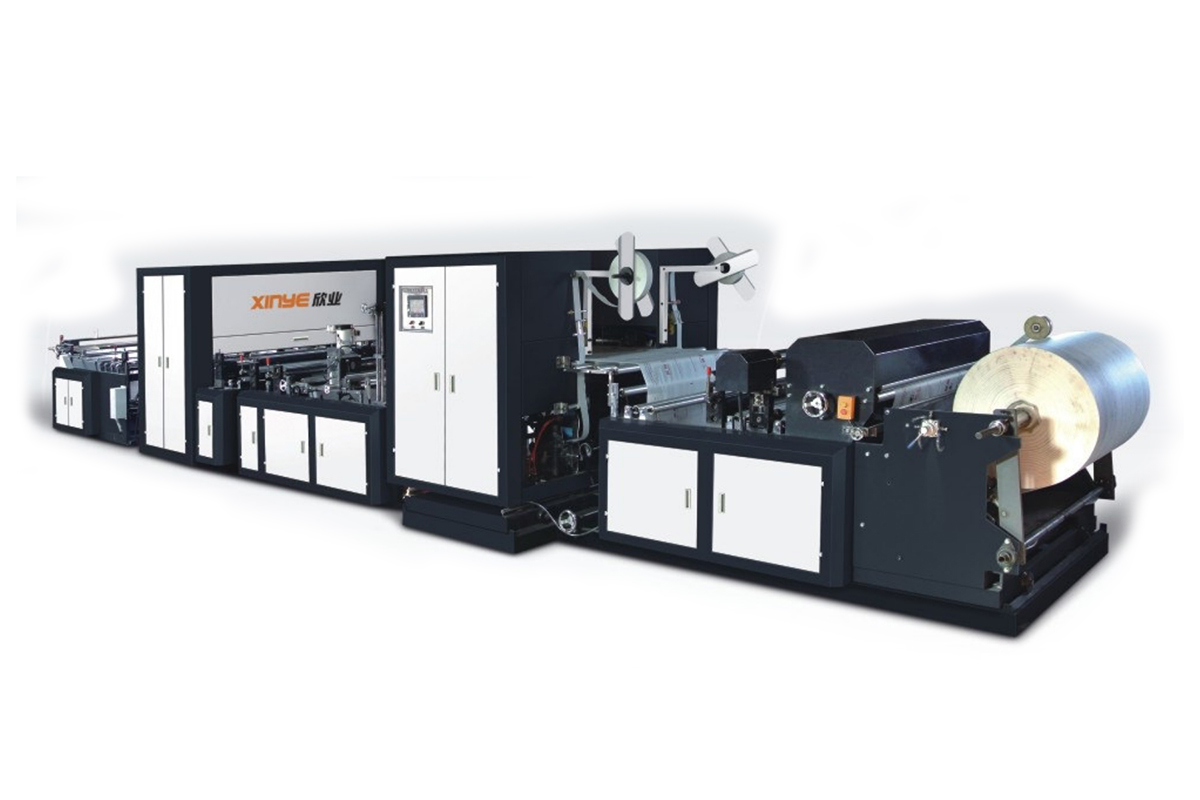

The machine uses for non-woven material; it can sew and make many kinds and sizes of bags. It is equipped with two computer touch screens, step motor to control the length and photocell to track accurately and steadily. There are control devices like auto-counting alarming,auto shut-down system etc,which make the finished products well-sealed and nice-cutting with high speed and efficiency.It is an ideal environmental friendly bag making equipment.
| Sheet Size & Loop Handle Length | Length | 500-1000mm |
| Width | 300-550mm | |
| Loop Handle Length | 380-550mm | |
| Speed & Total Power | Speed | 8-13m/min |
| Total Power | 13.5KW | |
| Air Pressure & Power Supply | Air Pressure | 1.0m³/min, 0.6Mpa |
| Power Supply | 380V,50hz,3phases,4lines, single phase 220V | |
| Overall Size & Total Weight | Overall Size (L×W×H) | 11×2.2×1.95m |
| Total Weight | 3000KG |
