Product Detail

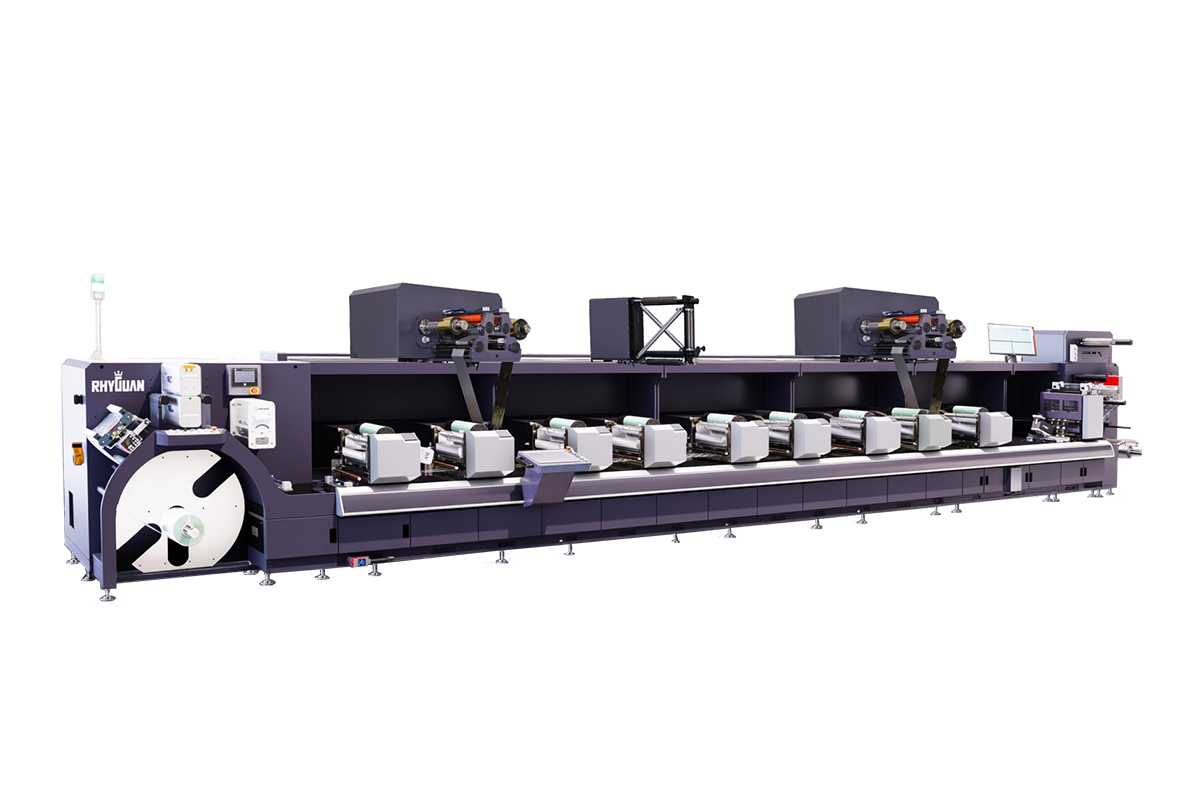

RF330 Modular Rotary / Intermittent Flexographic Printing Press is a patented product independently developed by Zhejiang Rhyguan Machinery Co., Ltd.

This printing machine can operate as a rotary press to reach a printing speed up to 180 m/min for regular flexo printing orders. It also supports intermittent printing of single labels with a minimum size of 50.8mm*150mm. There is no need to remake printing cylinders, which greatly reduces the consumption of printing plates and double-sided adhesive tapes, making it ideal for sampling and small-batch orders.

Technical Parameters RF-330
Full Rotary Intermittent
Max Mechanical Speed 180 m/min 60 m/min
Max Material Width 340 mm
Min Material Width 160 mm
Max Printing Circumference 609.6 mm (24″) 75% of Plate Roller Circumference
Min Printing Circumference 254 mm (10″) 50.8 mm (2″)
Register Accuracy ±0.1 mm
Recommended Double-Sided Tape Thickness 0.38 mm
Recommended Plate Thickness 1.14 mm
Max Unwind Roll Diameter 1,000 mm
Max Rewind Roll Diameter 1,000 mm
Air Shaft Size 76 mm (3″)
Substrate Thickness Range 0.05-0.25 mm
