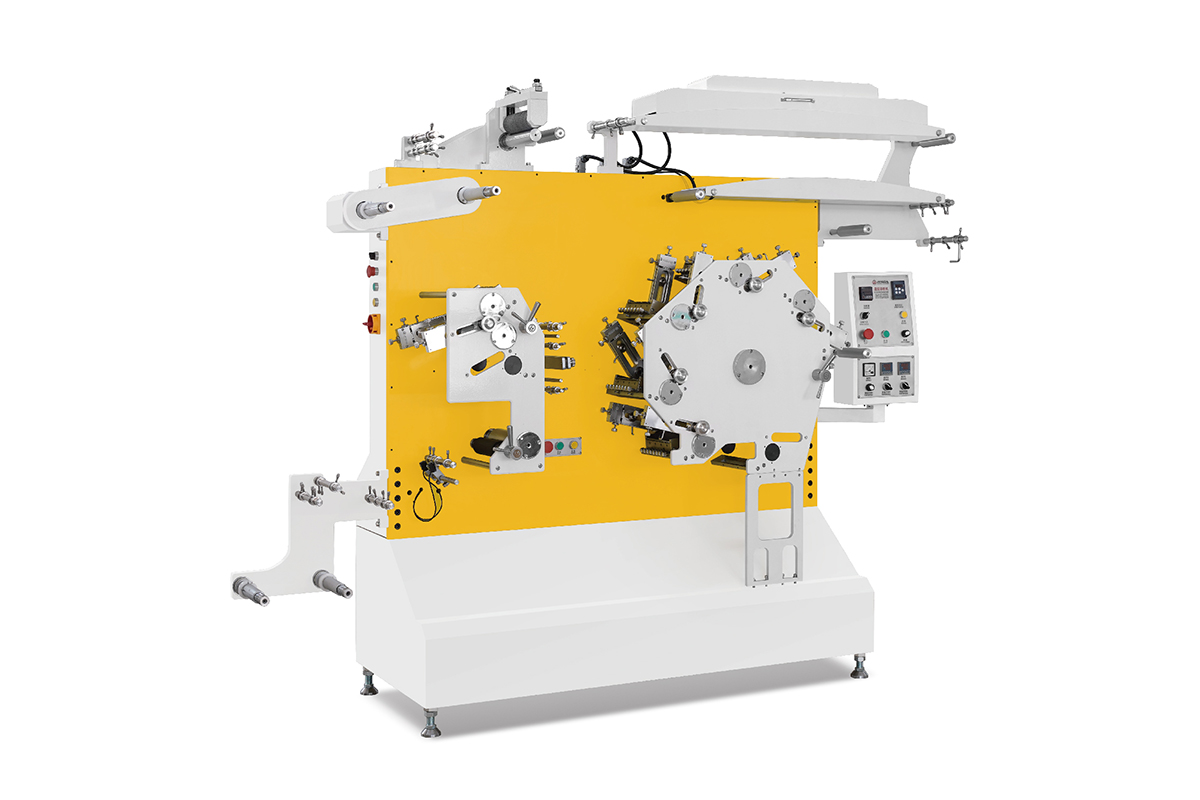

To accomplish the label image with strong washing fastness, we proudly present JR-1500 series Flexo Printing Machine. The printing mechanism of this series is that ink will be evenly spread-out on the ink-rollers at first, from the ink-rollers, the ink transfers to the printing cylinder, then, the flexo photopolymer plate will collect the ink and press directly on the surface of the materials, finally, the label will go through the drying process to complete the whole printing procedures. The printed label can reach the result of higher strong washing fastness by heating inside the 101 Automatic Temperature Controlled Oven between 3-8 hours.
The outstanding characteristics of this series are: strong colorfastness to wash and polish, perfect colour registration, stability and reliability, simple in adjusting the printing length just by switching the different printing cylinders.
| Parameter | 2 Colors | 3 Colors | 4 Colors | 5 Colors | 6 Colors | 7 Colors | 8 Colors |
| Single-sided Model | JR-1520 | – | – | – | – | – | – |
| Double-sided Model | – | JR-1521 | JR-1531 | JR-1541 / JR-1532 | JR-1551 / JR-1542 | JR-1561 / JR-1552 | JR-1562 |
| Printing Length Range | 108-401mm (JR-1560, JR-1561, JR-1562: max 300.8mm) | ||||||
| Max Printing Width | 155mm | ||||||
| Max Printing Speed | 60m/min | ||||||
| Applicable Materials | Satin tape, nylon tape, cotton tape, adhesive labels, roll paper and other web materials | ||||||
| Power Supply | AC 220V 50/60Hz | ||||||
| Total Power | 3.5kw | 4.7kw | 4.7kw | 6.2kw | 6.2kw | 6.2kw | 6.2kw |
| Overall Dimension (L×W×H, mm) | 1100×650×1300 | 1600×700×1900 | 1800×700×1900 | 1800×700×1900 | 1800×700×1900 | 2100×900×2000 | 2100×900×2000 |
| Net Weight | 350kg | 750kg | 770kg | 1000kg | 1000kg | 1200kg | 1200kg |
