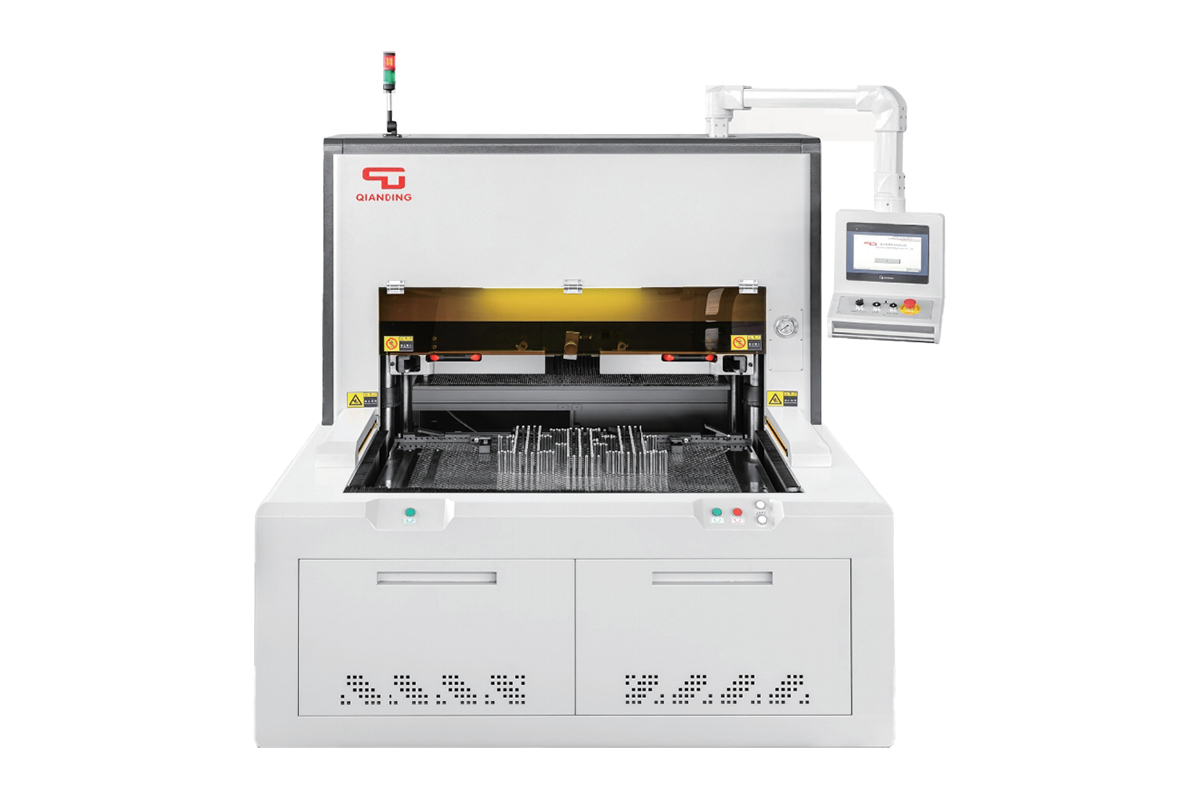

Differing from other models with one bundle each cycle work mode, HTQF-1080Q is a professional equipment that realizes full-page blanking jobs of any carton packaging products of different sizes and shapes on one single sheet in one cycle. It can better and more effectively handle complex-shapes and irregular-layout products, effectively improving productivity.
| Machine Model | HTQF-1080Q |
| Max. paper size (X*Y) mm | 1080 × 780 |
| Min. paper size (X*Y) mm | 300 × 300 |
| Max. paper pile mm | 60 |
| Min. paper pile mm | 25 |
| Work bench height mm | 820 |
| Max. blanking size mm | 1050 × 720 |
| Min. blanking size mm | 50 × 50 |
| Blanking speed cycles/min | 1-3 cycles/min |
| Max. working pressure bar | 110 bar |
| Air consumption L/min | 7 L/min |
| Overall power | 8.5 kw |
| Net weight kg | 4300 kg |
| Machine net dimension L*W*H mm | 1850 × 2060 × 2100 |
| Packaging size L*W*H mm | 2000 × 2160 × 2200 |
